Pyrolysis Oil From Tyres

Pyrolysis Oil From Tyres

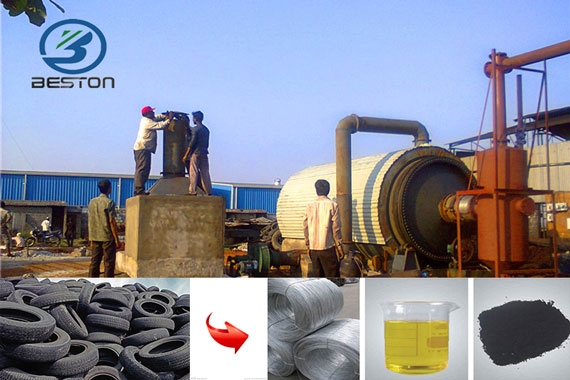

Pyrolysis is a green technology which takes advantage of high temperature heating and special catalyst. By using the pyrolysis plant, those waste tires are effectively converted into about 45% pyrolysis oil from tyres, 35% carbon black and 15% steel wire. And these pyrolysis products have a relatively wide range of applications.

Pyrolysis Oil From Tyres

The oil from waste tyres can be used as industrial fuel materials for burning, or further refined to diesel or gasoline. The carbon black can be used for making construction bricks with clay or used as fuel. The steel wire can be re-sale or reprocessing. These products also can be sold directly, and fetch good prices in the market. Holding high economic value, they will surely bring you great benefits.

oil from tyres plant
Oil from tyres plant

We have been specializing in the design and manufacture of waste tyres to oil plants since 1998. Our oil from tyres plant is equipped with safety device (alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system, fire fighting devices) and advanced dedusting system (dust chemical removing tank, ceramic ring filtering system and alkali sprayers), which will guarantee safety and no pollution in production.

Besides, we also provide the excellent after-sales service. For example,(1) Design the installation drawings according to the customers’ site.(2) 1 year warranty, engineers available to service at any time.(3)Periodical call visit, to make sure there is no problems of the equipment.(4)Design specific maintainence program according to different situation of your plant. (5)For each set of machine, one technician will be sent to guide the installation work, test the machine and train the workers.

pyrolysis oil from tyres
Pyrolysis oil from tyres



Beston Pyrolysis Plant Types:

Batch Pyrolysis Plant
Batch Pyrolysis Plant



Model BLJ-6 BLJ-10
Daily Capacity 6T 8-10T
Total power 24 kw/h 30 kw/h
Floor area (L*W*H) 20*10*10 m 25*15*10 m
Size of reactor D2.2*L 5.1m D2.8*L6.2 m
Pattern Horizontal & rotary
Working method Batch





Semi-Continuous Pyrolysis Plant
Semi-Continuous Pyrolysis Plant

Model BLL-16
Daily capacity 16-20T
Working method Semi-continuous
Size of reactor D2.8 *L7.1 m
Pattern Horizontal & rotary
Floor area 25*15*10 m (L*W*H)
Total power 54 kw/h





Fully Continuous Pyrolysis Plant
Fully Continuous Pyrolysis Plant

Model BLL-30 BLL-40 BLL-50
Daily Capacity 30T 40T 50T
Working method Fully continuous
Size of reactor L12.5*W2.2*H2.5m
Pattern Not rotary type
Floor area 20*15*10m 33*15*10m 33*15*10m
Total power 53.6kw/h 62kw/h 84kw/h





Basic Parameter:

Data BLJ-6 BLJ-10 BLL-16 BLL-30,BLL-40,BLL-50
Daily capacity 6 MT 10 MT 20 MT 30MT,40MT,50MT
Raw material Waste tires,rubber,plastic,oil sludge,medical waste
Working method Batch Semi-Continuous Fully continuous
Operating pressure Constant pressure
Reactor rotate speed 0.4 turn/minute Not rotary type
Total power 24 kw/h 30 kw/h 54 kw/h 53.6,62,84(kw/h)
Reactor size(m) 2.2*5.1 2.8*L6.2 D2.8 *L7.1 L12.5XW2.2XH2.5
Space (L*W*H) 20*10*10 m 25*15*10 m 25*15*10 m 20*15*10m,33*15*10m
