Small Scale Plastic Recycling Plant

Small Scale Plastic Recycling Plant

For the customers who want to dispose a few tons of waste plastics in per day, the BLJ-06 small scale plastic recycling plant is a good choice. The handing capacity of the small pyrolysis plant is 6 tons per day, while the oil yield is 2.7 tons.

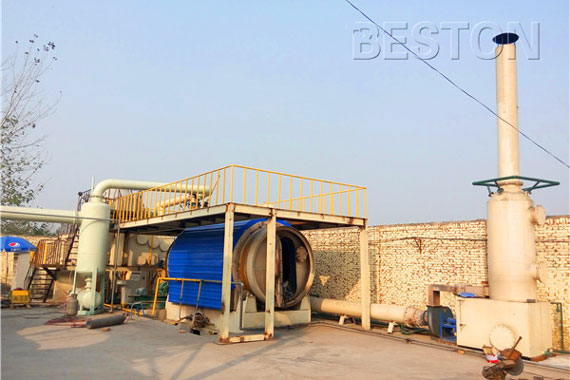

Small Scale Plastic Recycling Plant
Small Scale Plastic Recycling Plant

General introduction of small pyrolysis machine

This kind of small plastic recycling plant includes reactor, mainfold, condenser system, hydroseal, dedusting system, discharge system, oil tank, etc. The main performance principle is to use the high temperature to heat the reactor, and then generate the oil gas. Next, through the condenser system to produce the fuel oil entering into the oil tank. There are some combustible gas in the pyrolysis process, and they will through the hydroseal to take in the harmful components and then recycled by reactor to be used as fuel, which has saved much energy and realized the heat self supporting.

In order to ensure the gas doesn’t overflow and increase the pyrolysis efficiency on the productive process, our small pyrolysis plant has introduced the Micro negative-pressure technology, so that it can thoroughly eliminate the insecure hidden trouble because of the gas overfilling. In addition, the small scale waste plastic recycling plant has installed several purity filters devices, which can realize pollution-free production.

The raw materials suitable for small scale pyrolysis machine include waste tires, waste plastic, waste rubber, and oil sludge, etc.

small pyrolysis machine
Beston small pyrolysis machine shipped to Indonesia

Applications of the final products from small plastic pyrolysis plant

Beston BLJ-6 small scale waste pyrolydsis plant can extract fuel oil and carbon black from different plastic materials, boht of which have wide uses in our daily life. For example, the fuel oil can be applied directly in many industries to generate electricity, and it also can repress into diesel by plastic to diesel machine. As for the carbon black, it can be used as the additive in paint and construction, or made into honeycomb briquette that has a high combustible value.

Our small scale plastic recycling plant has the following advantages:

1. Our plants have passed CE, ISO, SGS certifications.

2. Adopting advanced pyrolysis technology, the small pyrolysis machine can effectively convert waste plastic into pyrolysis oil and carbon black. Both of the end-products have a wide range of applications. Such as, the pyrolysis oil can be widely used as fuel oil in industries such as steel and iron and Boiler factories, ceramics, power or chemical industries etc. And it can be used for generators to get electricity. And the carbon black can be used for construction bricks with clay, also can be used as fuel.

small plastic recycling plant
Small Plastic Recycling Plant from Beston

3. The structure of reactor for the pyrolysis process is 360-degree rotating. This special design makes the bottom of reactor get heated evenly, which can lengthen the service life of reactor as well as improve the pyrolysis efficiency.

4. We can provide special catalyst, which is made from 24 chemicals. The catalyst not only can reduce sulfur content and density of oil, but also improve its flavor and color.

small plastic recycling machine for sale
Small Plastic Recycling Machine for Sale

5. The small plastic to oil plant is equipped with safety device (alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system, fire fighting devices) and advanced dedusting system (dust chemical removing tank, ceramic ring filtering system and alkali sprayers), which will guarantee safety and no pollution in production.

6. In the process of pyrolysis, some combustible gas can not be converted into oil liquid in normal temperature and pressure, which could be recycled to the bottom of the reactor for reheating through the pipe of tail gas. In this way, it can avoid the gas contamination and save the fuel energy.

Small Scale Plastic Recycling Plant on Working Video:


    Besides,  the raw materials without any pretreatment, automatic discharging of carbon black, less occupied area and cheaper price are also the main advantages of BLJ-06. For more details about BLJ-06, just consult us directly.

    Features of small plastic recycling pyrolysis plant

    1. Simple structure, single machine with multiple purposes

    2. Flexible operation, strong adaption.

    3. Small occupied areas

    4. As for the daily capacity, the small scale plastic recycling plant is suitable for the small and middle size oil industries.

    5. Our pyrolysis plant has high economic benefits with low investment.

    6. It meets the national emission standard.

    7. The small plastic recycling plant price is lower than other models, which is quite suitable for the customers who want to start a small business.

    small pyrolysis plant
    Small pyrolysis plant is ready for shipping to Korea

    Measures about how to maintain the small scale pyrolysis plants

    1. Routine protection: routine protection regards the clean, smooth, view and tightens as center at each time no matter when before starting the machines, during the operation or after stopping the machine, we must make routine protection according to principle.

    2. Timing protection: according to the demand of various plants, when the plant has completed the regulation working hours or the regulation distance, it is necessary to make corresponding timing protection.

    Basic Parameter:

    Model BLJ-6 BLJ-10
    Daily Capacity 6T 8-10T
    Working Method Batch
    Raw Materials Waste Plastic, Tyre, Rubber, Oil Sludge
    Reactor Size D2.2*L6.0m D2.6*L6.6m
    Pattern Rotary
    Heating Materials Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc.
    Total Power 24kw/h 30kw/h
    Floor Area (L*W*H) 30*10*8m 30*10*8m
    Operating Pressure Normal Pressure
    Cooling Method Water Cooling
    Service Life 5-8 Years
