Waste Tyre Pyrolysis Plant


As a leading manufacturer in the field of waste tyre pyrolysis in China, Our newly designed waste tyre pyrolysis plant for sale has the features of environmental protection and energy-saving, high oil output rate, safe, durable, etc.

pyrolysis of tyres
Beston Pyrolysis of Tyres Plant in Brazil

Brief introduction of waste tyre pyrolysis plant for sale

The latest tyre pyrolysis plant for sale refers to heating the waste tire materials in the reactor through high temperature, and when it reaches the related temperature, the oil gas will generate in reactor; the oil gas will be condensed into fuel oil passing through the subsequent connected condenser system; the fuel oil can be used as fuel directly. After the oil fully discharges, the left slag in reactor is called carbon black, which has high combustion value and also called biomass. This kind of carbon black can be compressed into ball to replace the coal directly or ground into fine powder as additive. Besides, the steel wire can be recycled by steel and iron industries.

waste tyre pyrolysis plant
Beston Group waste tyre pyrolysis plant for sale

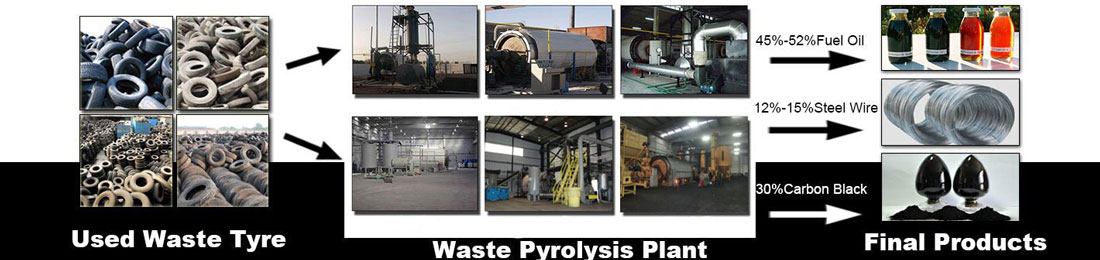

Generally, we can get 45% tyre pyrolysis oil, 35% carbon black, 12% steel wire and 8% combustible gas from the whole tire pyrolysis process. All the end-products are in high demand and have wide applications, good prices in the market, which will surely bring great benefits for you.

Operational procedure of waste tire pyrolysis plant:

1. Pretreatment of the tire pyrolysis machine

In order to guarantee the raw material can be fed continuously in a sealed and uniform feeding system, the pyrolysis of tyres must have a shredder pretreatment. The size required blow 3-5 cm is better.

2. Feeding

The pyrolysis tire recycling system has introduced the sealed screw conveyor to feed, and the machine can set the feeding speed to control the whole process in order. The tyre pyrolysis equipment has also installed the airlock which can make sure that there is no air entering into reactor and prevent the hidden danger.

plastic waste pyrolysis process

3. Pyrolysis

Pyrolysis of waste tires adopts the indirect heating system, and the fire will not get in touch with the inline of reactor. The heating source connects with the pyrolysis system through the burner and heats in hot air, which can extend the using time of reactor and heat uniformly.

3. Cooling

Cooling system is also an important part of tire pyrolysis system , which can fully cool the oil gas and increase the oil yield.

4. Discharge

Beston waste tyre pyrolysis plants use the screw conveyor to connect the most terminal of the reactor to flush off. Besides, the outside of the screw conveyor has recycling cooling layer which can prevent the effluent carbon black from overheating to destroy the removal equipment and scalding workers.

Beston Tyre Pyrolysis Plants Types:

Batch Pyrolysis Plant
Batch Pyrolysis Plant
Model BLJ-6 BLJ-10
Daily Capacity 6T 8-10T
Total power 24 kw/h 30 kw/h
Floor area (L*W*H) 20*10*10 m 25*15*10 m
Size of reactor D2.2*L 5.1m D2.8*L6.2 m
Pattern Horizontal & rotary
Working method Batch



Inquiry

Please Feel free to give your inquiry in the form below. We will reply you in 24 hours. Thanks

EMAIL:sales@wastepyrolysisplant.net



Semi-Continuous Pyrolysis Plant
Semi-Continuous Pyrolysis Plant

Model BLL-16
Daily capacity 16-20T
Working method Semi-continuous
Size of reactor D2.8 *L7.1 m
Pattern Horizontal & rotary
Floor area 25*15*10 m (L*W*H)
Total power 54 kw/h





Fully Continuous Pyrolysis Plant
Fully Continuous Pyrolysis Plant

Model BLL-30 BLL-40 BLL-50
Daily Capacity 30T 40T 50T
Working method Fully continuous
Size of reactor L12.5*W2.2*H2.5m
Pattern Not rotary type
Floor area 20*15*10m 33*15*10m 33*15*10m
Total power 53.6kw/h 62kw/h 84kw/h





The special advantages of Beston waste tire pyrolysis equipment are as follows:

1. Tyre pyrolysis plant manufactured by Beston Group has introduced the international top technology called “The Zero Stripping”, which doesn’t need to use special technology to make the steel wire and rubber for secondary separation in the process of pyrolysis. This kind of technology plays an important role in saving energy and reducing cost. Besides, it also greatly upgrades the economical efficiency.

2. In order to ensure the gas doesn’t overflow and increase the pyrolysis efficiency in the production process, the tire pyrolysis plant has introduced the micro negative-pressure technology, so that it can thoroughly eliminate the insecure hidden trouble because of the gas overfilling.

waste tyre pyrolysis machine
Beston waste tyre pyrolysis machine shipped to Indonesia

3. After the tires has finished the pyrolysis process, most parts become liquid products and a little combustible gas can be recycled as the fuel in the pyrolysis reactor, which ensures the heating supply of the pyrolysis reactor and reduces the waste gas discharging. In this way, it is conductive to improve the efficiency of economic and environment.

4. The waste tires pyrolysis plant design can meet the international standard, which has the compact structure, scientific and high-efficiency production line, safe and table operation, and the powerful processing ability. In addition, the collocation of each system is reasonable. All of these unique features have positive meaning on promoting working efficiency, reducing energy and protecting ecological environment.

Basic Parameter:

Data BLJ-6 BLJ-10 BLL-16 BLL-30,BLL-40,BLL-50
Daily capacity 6 MT 10 MT 20 MT 30MT,40MT,50MT
Raw material Waste tires,rubber,plastic,oil sludge,medical waste
Working method Batch Semi-Continuous Fully continuous
Operating pressure Constant pressure
Reactor rotate speed 0.4 turn/minute Not rotary type
Total power 24 kw/h 30 kw/h 54 kw/h 53.6,62,84(kw/h)
Reactor size(m) 2.2*5.1 2.8*L6.2 D2.8 *L7.1 L12.5XW2.2XH2.5
Space (L*W*H) 20*10*10 m 25*15*10 m 25*15*10 m 20*15*10m,33*15*10m
