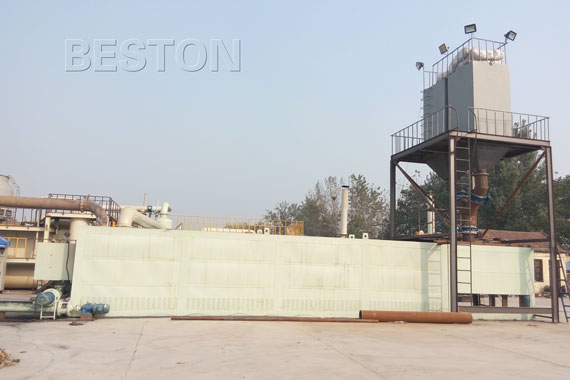

Continuous Plastic Recycling Plant

Continuous Plastic Recycling Plant


In order to meet different customers’demands, we have manufactured six models of plastic recycling plants, such as BLJ-06, BLJ-10, BLL-16, BLL-30, BLL-40 and BLL-50. Both BLJ-06 and BLJ-10 are batch operating systems; BLL-16 is semi-continuous system; BLL-30, BLL-40 and BLL-50 are fully continuous systems.

Continuous Plastic Recycling Plant

The continuous plastic recycling plant mainly has the following advantages:

1. Compared with traditional batch operating plants, our auto continuously operating pyrolysis plants have relatively larger processing capacities of 30-50mt per day.

2. The fully continuous plant can achieve feeding of materials and discharging of slags automatically, and can also finish the two steps at the same time, which not only saves time, but also saves fuels.

3. The reactor of our auto operating pyrolysis plant is stable and not rotary, which makes the temperature rise and pyrolysis react quickly. This special design makes the whole pyrolysis process efficient and can also save much heating materials.

4. The fully continuous operating plant can run for 24 hours a day without a stop and needn’t to be cooled before the second batch.

Besides,  the continuous plant can effectively convert waste plastics into plastic oil and carbon black. Both of the end products have wide applications and can sell well in the market. Especially the oil, it can help in relieving today’s energy crisis. In addition, to get higher oil yield, we have special catalyst, which can improve oil quality and output efficiency.

What’s more, our continuous waste plastic recycling plant is also equipped with safety device (alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system, fire fighting devices) and advanced dedusting system (dust chemical removing tank, ceramic ring filtering system and alkali sprayers), which will guarantee safety and no pollution in the whole production process.

Continuous Plastic Recycling Plant 3D

For more details about the continuous plastic recycling machine, just feel free to consult us please. We have special customer service department 24-hour online to solve any questions you may have.

BLL-30 waste pyrolysis plant

Model: BLL-30
Daily capacity: 30 MT
Total power: 53.6 kw/h
Reactor size: L12.5*W2.2*H2.5
Space (L*W*H): 20*15*10m



BLL-40 waste pyrolysis plant

Model: BLL-40
Daily capacity: 40 MT
Total power: 62 kw/h
Reactor size: L12.5*W2.2*H2.5
Space (L*W*H):33*15*10m



BLL-50 waste pyrolysis plant

Model: BLL-50
Daily capacity: 50 MT
Total power: 84 kw/h
Reactor size: L12.5*W2.2*H2.5
Space (L*W*H): 33*15*10m



Data BLL-30 BLL-40 BLL-50
Daily capacity 30MT 40MT 50MT
Raw material Waste tires,rubber,plastic,oil sludge,medical waste
Working method Fully continuous
Operating pressure Constant pressure
Reactor rotate speed Not rotary type
Total power 53.6kw/h 62kw 84kw
Reactor size(m) L12.5XW2.2XH2.5 L12.5XW2.2XH2.5 L12.5XW2.2XH2.5
Space(L*W*H) 20*15*10m 33*15*10m 33*15*10m
