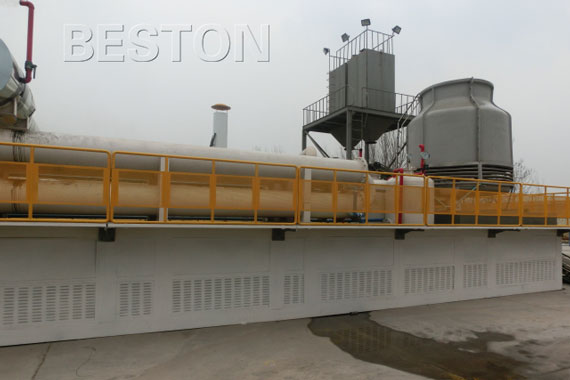

Plastic Pyrolysis Equipment

Plastic Pyrolysis Equipment


With 18 years’ experience, our waste plastic pyrolysis equipment is quite mature In the domestic and foreign market. The pyrolysis equipment designed by Beston Group is equipped with safety device (alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system, fire fighting devices) and advanced dedusting system (dust chemical removing tank, ceramic ring filtering system and alkali sprayers), which will guarantee safety and no pollution in production.

Plastic Pyrolysis Equipment

Adopting advanced waste plastic pyrolysis technology, the waste plastic pyrolysis equipment makes these plastics heated in high temperature (about 250-280℃). Through pyrolysis process, waste plastic is effectively turned into fuel oil and carbon black. Both of the end-products are useful resources and also have wide applications. The oil can be used as industrial fuel materials for burning, or further refined to diesel or gasoline. The carbon black can be used for making construction bricks with clay or used as fuel. They are in high demand and can fetch good prices in the market. Especially the fuel oil, it also can help in relieving energy crisis.

Besides, there are several factors that affect the oil output rate. Firstly, different materials have different oil output rates. For example, PE,PP and PS all have about 50%-70% oil output rate, while ABS have 40%. Secondly, the rate also differs according to the materials’ humidity. For example, wet leftovers of paper have 15-20% oil output rate, while dry leftovers of paper have 60%. Moreover, the operating systems also influence the oil output. For our spray plastic pyrolysis equipment, the continuous system has higher oil yield and higher efficiency than bacthing system.

plastic waste pyrolysis equipment

No matter which operating system you choose, we will provide you with special catalyst. The catalyst is made from 24 chemicals, which not only reduces sulfur content and density of oil, but also improves its flavor and color. Thus, the unique catalyst can guarantee the oil’s quality, and also guarantee the oil output rate as high as 50%-55%.

Data BLJ-6 BLJ-10 BLL-16 BLL-30,BLL-40,BLL-50
Daily capacity 6 MT 10 MT 20 MT 30MT,40MT,50MT
Raw material Waste tires,rubber,plastic,oil sludge,medical waste
Working method Batch Semi-Continuous Fully continuous
Operating pressure Constant pressure
Reactor rotate speed 0.4 turn/minute Not rotary type
Total power 24 kw/h 30 kw/h 54 kw/h 53.6,62,84(kw/h)
Reactor size(m) 2.2*5.1 2.8*L6.2 D2.8 *L7.1 L12.5XW2.2XH2.5
Space (L*W*H) 20*10*10 m 25*15*10 m 25*15*10 m 20*15*10m,33*15*10m
